Battery Driven

Battery Powered Shelf Talker Retail Screen

Running User Activated Videos For 90 Days With 8pcs D Batteries

Easy to Set up via Plug & Play, Maintainance-Free, Optional With Push Button or Motion Sensor For User Activattion.

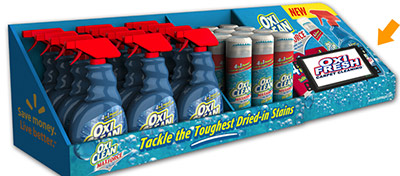

The purpose for most battery-driven promotions is to balance effectiveness with battery life. Since common retail screens don’t have low-power consumption neither for video playback mode nor stand-by mode. Thus low-power consumption during stand-by (sleeping ) mode is critical for a professional battery-driven in-store advertising solution. Thanks to the intelligent power management technologies we have employed, with a smart micro controller on-board to monitor the working status, we have managed to minimize the power consumption not only for stand-by mode but also for video playback mode.

Power Manager via Video-Triggering Interactivity

Playing content when your customers are not present to view is a waste of battery power. Low-power Play uses interactive video triggers such as PIR motion sensor, buttons and touchscreen to control the delivery of content. Most common is for a display to use an ultra-low power ‘standby-sleep’ when no customer is close and to use a motion sensor to trigger playback when motion is detected. Buttons and touchscreens can be used to regulate and control further content delivery.

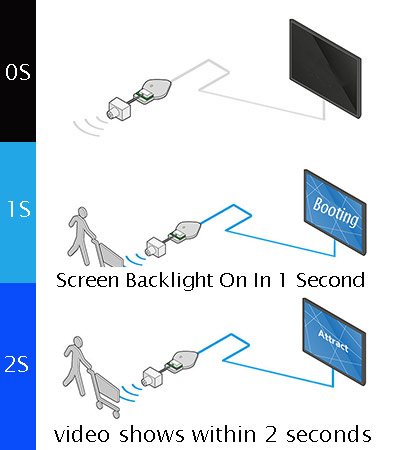

Super Short Boot Up Interval less than 2 second, Catch customer’s attention instantly

Efficient battery power management is not enough for a successful battery-driven promotion, the short boot up interval is the key to catch customer’s attention instantly and deliver the video content in the very timing not longer than expected, in-store shoppers may walk away to other brands if the interval between video triggering and video loading is more than 2 seconds. We proudly develop our battery driven retail screens with careful engineering in hardware & software to shorten such a key interval within 2 seconds while screen is reset to light up within 1 second.

Smart Features To Address The Very Practical Needs

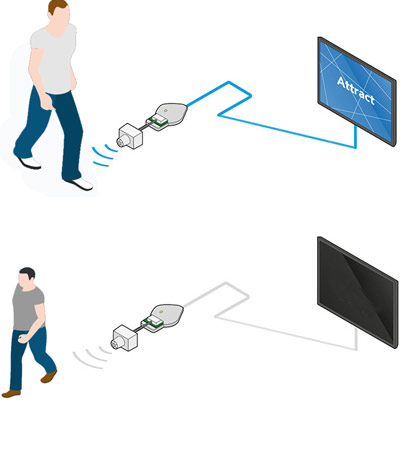

Without Low-Power Play, high footfall and busy areas will cause multiple activations of motion sensor or button playing your content continually but with minimal benefit. With battery life measured in numbers of playbacks, early battery depletion will quickly occur. Low-power Play has a customizable playback profile which is configured to limit and regulate the number of times content playback is triggered within certain creative time parameters. For example, for high footfall & busy areas, a delay interval could be set in the firmware which is specified to keep the standby-sleep for the preset interval after each activation, then for human motion of people leaving out the active area, activation will be disabled. Then your customers get the message you want to deliver while Low-Power Play controls content playback and battery usage

Specifications

Available screen sizes

3.5-inch, 4.3-inch, 7-inch, 10.1-inch, 15.6-inch

Form Factor

Openframe (Frameless ), Framed ( Enclosed )

Screen Brightness

200 nits

Interface

USB, SD Card, Volume-Knob, Molex 4-pin x6, DC-in

Power Manager

Motion Sensor, LED Push Button, Hall Sensor, etc

Battery Type

Alkaline or Lithium batteries

Battery Level Alarm & Indicator

Optional, with premium smart battery compartment ( needs to purchase separately )

Resources

Drawings and Specification

Specification

Download⁠⁠⁠⁠⁠⁠⁠
