DaisyChain Video Screens

arrow
DaisyChain Video Screens
How to Buy
Available in monitor, video screen, tablet

Daisy-Chain Connect Multiple Bar LCD Monitors.

From One Source Media Player With Built-in HDMI Connectivity For Cross-Screen Impact Advertising

How does it work ?

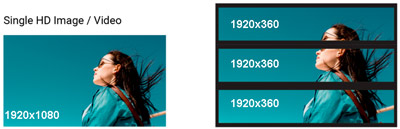

As shown on the right, One HD video (1920×1080 pixels ) is divided evenly across screens with smaller resolutions. For example, one 19-inch bar screen has a resolution of 1920×360. That is 1/3 of the standard HD video.


Therefore, you can divide one HD video into three video sections, thus, 3 pieces of stretched screens will display a video together. Each screen can get its serial(position x, y) automatically with our serial connector or it can be preset with remote control to OSD setup before final installation.

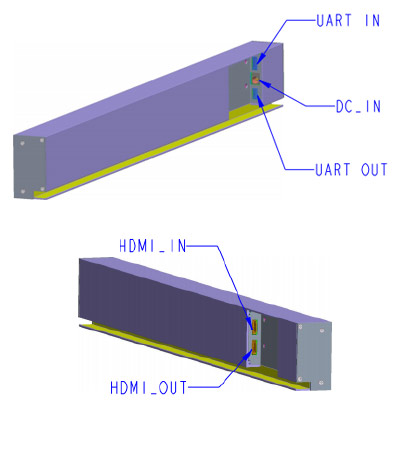

Highly Integrated Into One Single Board On Each Monitor With HDMI In & Out For Chain Connection

Traditional video wall solutions take advantage of existing HDMI splitter to manage the video content distribution, which is not installation friendly with poor reliability due to the complicated cable management.

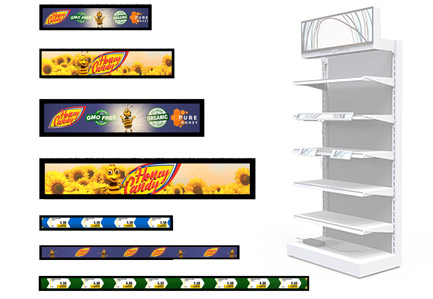

Daisy chain bar screens have smart connection with included HDMI in & out embedded on the monitor driver board, thus, external HDMI splitter is of no need, cable management are much easier for on-shelf advertising scenarios.

Simply connect HDMI-in & out in a chain between screens and insert the DC power, connect with source media player the HDMI-in port on the first screen, that’s it.

Supports 1080P & 4K

Our android/ networked version support 4K (3840×2160 pixels ) resolution video, it will quadruple the number of video sections that can be supported with HD videos.


For example, the 4k video (3840×2160 pixels ) can support 12pcs of 1920×360 pixels video sections, while 1080P video can support only 3 pcs of 1920×360 pixels sections

Specifications

Primary Display

Size up to 86 inch;

Stand-alone, or networked;
1080P or 4K;

Secondard Display(s)

Size up to 86 inch;

HDMI-in & out Monitor;

Touch Technology & Capacity

PCAP (Projected Capacitive) - 2 Touch / Optional

In-field User-settings

via remote control to setup primary display sequence(monitor videowall mode)
