Shelf-edge Multi-LCD Strip

Displaying Your Compelling Video Ads In A Group Of Split Screens

Tech-free Integration Into Shelf-Edge Via Connecting Media Players & Synchronizer, Modular Displays Available From 4.3 inch, 7 inch, 10.1 inch, 13.3 inch To 31.5 inch

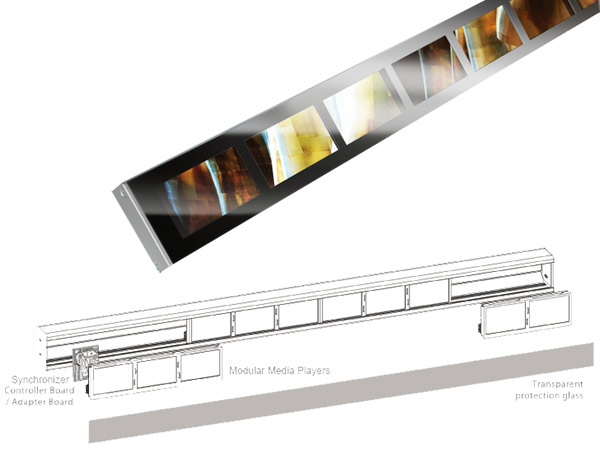

Shelf Video Strip Modular Design

Our shelf video strip consists of 3 parts, the screen cell, media player board, and synchronizer controller board. In order to quickly response to custom projects, we have built the synchronizer and 3 media players together into one single board, in this way, to expand to other cell quantity model, we could use our own single cell media player board.

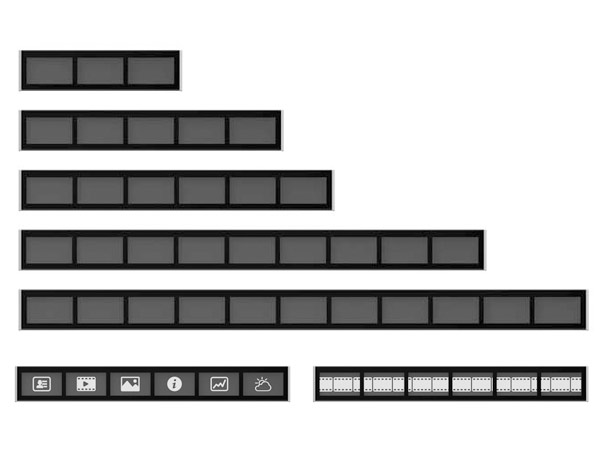

Shelf Video Strip Up To 12 Screen Cells.

The shelf video strip supports up to 12 cells per strip, actually, the android version supports up to 64×64 cell matrix technically. Each screen has its only video content either from the dedicated media player for the screen cell, or the distributed video from the android controller via HDMI-TTL mechanism.

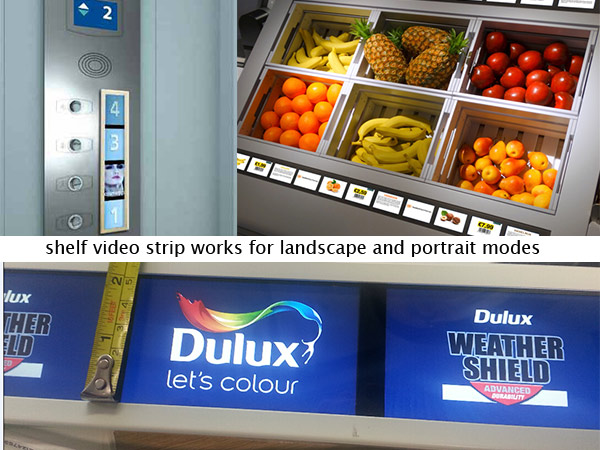

Work In Landscape & Portrait Modes.

The shelf video strip has been widely used for the scenario that is space-restrict while still needs massive attraction, the suitable uses & markets are Supermarkets, Pharmacies, Service Stations, Banks, Hardware Stores, Clothing Stores, Electronic Stores, Duty Free Stores, Phone Outlets, Vending Machines, Liquor Stores, Elevator, Gaming Machines,or under a quick pizza maker’s retail stand.

Not every scenario is working in landscape, there is also applications that need to be working in portrait mode ( which is supported ).

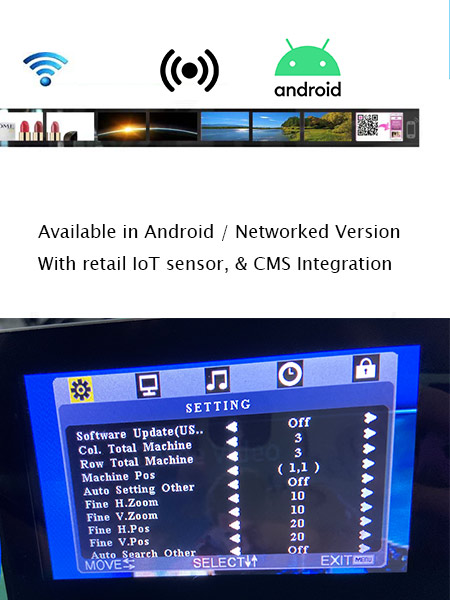

Stand-alone For Plug & Play, Or Android Networked With Retail IoT & CMS Integration.

We have stand-alone version with content update via USB auto-copy, also we have networked, android version with retail IoT and CMS integration, sending multi-layer content to the video strip remotely and grouply.

Android shelf video strip is much different with stand-alone one in the settings, technically, it is a daisy-chain controller to distribute video to each screen cells like video-wall solution ( a video wall made of small screens with only one row but many columns ), the source video is only one file and the solution will crop the video and send the right part to the destination cell automatically ( based on the settings of x, y location ).

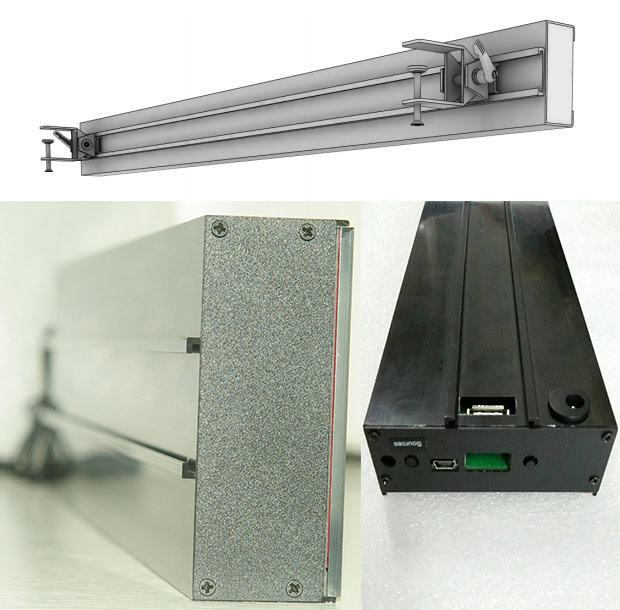

Shelf Edge Clamp Mounts, Optional Custom Based On Your Ideas.

As default, we have a slide-in clamp mount for on-shelf installations, it is simple and secured, we can also customize the shelf strip mounts according to different installation profiles.

Specifications

System Achitecture

Power Controller + Synchronizer +Media Player(s) + Speaker(s) + Brackets

LCD Panel Sizes

4.3-inch, 7-inch, 10.1-inch, 13.3-inch, 18.5-inch, 21.5-inch;

Screen Resolution

480x272 pixels /4.3 inch;

1024x600 pixles /7-inch;

1366x768 pixels / 13.3-inch;

1366x768 pixels /18.5-inch;

1920x1080 pixels /21.5-inch;

Video Codec

MPEG 1,2, H.264, Xvid, 720x576 @30fps (economy) or 1920x1080 @30fps;

Video File Extension

.avi, .mp4

Synchronizer Board

Control up to 12 PCs of display modules;

Control playback sequence to ensure the lowest timing discrepancy in every X minutes;

Content Update

USB Auto Copy Into Each Module

Resources

Drawings and Specification Datasheet

Specification

Download⁠⁠⁠⁠⁠⁠⁠
