Image of item

Audio Player With Video

arrow
Audio Player With Video
How to Buy
Personal Demonstration

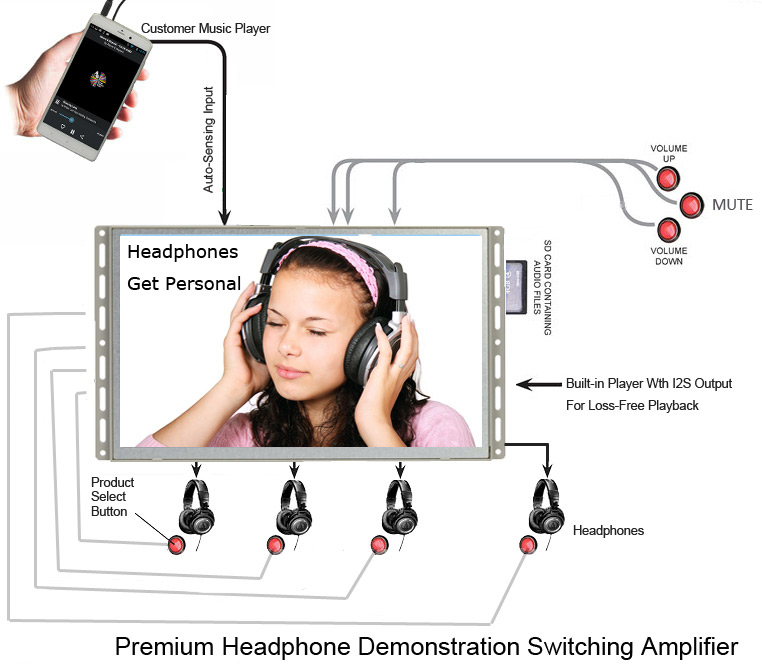

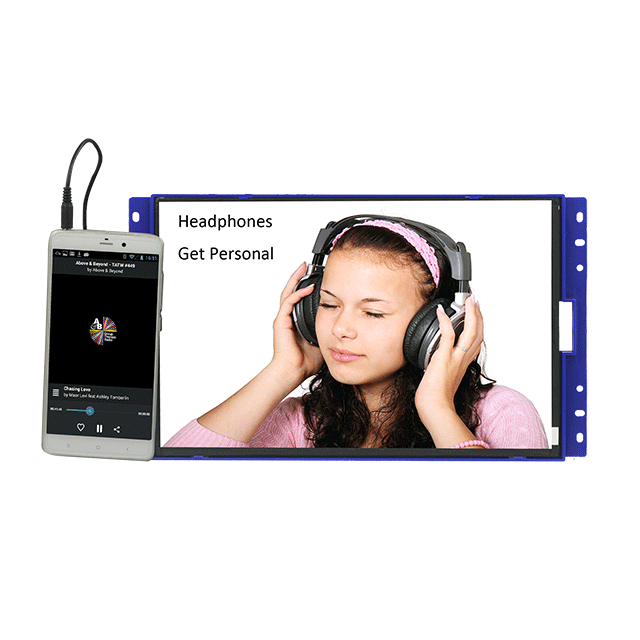

Retail Audio Demo With Video & Customer Device Line-in

Support up to 8pcs headphones / speakers, video screen size up to 31.5 inch. Support both 3.5mm audio output and USB digital audio output.

Retail Lighting & Peripherals Integration

When shoppers pick up the demo audio products like headphones to listen and compare, the selected demo item will be highlighted by LED lighting. It makes shoppers more engaged during operating other peripherals like push button, lift sensor, etc.

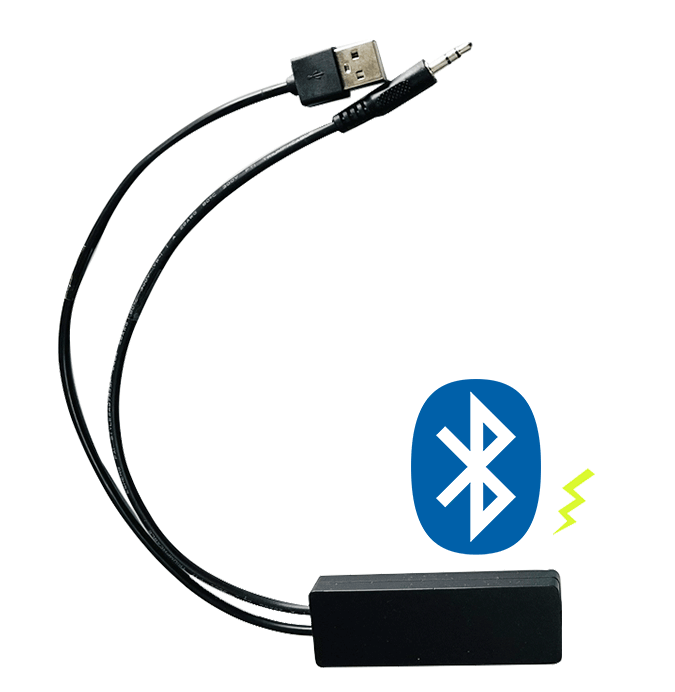

Customer Line-in via 3.5mm or Bluetooth

Customer device line-in supports all the smartphones including 3.5mm, type-C, lightning via wired (3.5mm) or wireless connection (Bluetooth).

Specifications

Accoustic Specification

>Frequency response: 20 – 20KHz (+/- 0.609dB ), ;

>Measured Total Harmonic Distortion: 0.07% ;
>SNR:81.5dB;
>Measured Output: 227mV / 6.49wW ;
>Measured Output dB levels(dBu): -10.6dbu@ 1KHz

LCD panel

10.1 inch IPS 300nits brightness 11280x800 pixels

DAC Spec

24-bit, 96KHz;

File formats

avi (1920x1080 @ 30fps, bitrate up to 20Mbit/s, MPEG1/2, MPEG4(xvid), MOV(XVID. H.264), .mp4 (Xvid, H.264), support mp3 in video up to 320kbps; PCM up to 24bit, 96KHz, 4.39Mbit /sec (.mov )

File storage media

SD/SDHC card,USB 2.0 x1; Format: FAT32

Interface

3.5mm Headphone Output Port x4, 3.5mm Headphone Customer Line-in x1, DC in 12V x1, USB 2.0 x1, SD card x1, Power On/Off, GPIO 4-pin Molex ;

General Information

Case Material High‐quality PC+ ABS case with partial rubber injection ;                                                        Case Color Standard color: Black or Blue (Customized color upon request) ;                                                  Storage Temp (‐15 ‐‐ 65 degree) ;                                                                                                          Working Temp (0 ‐‐ 50 degree) ;                                                                                                      Dimension 300.125x188x32.8mm;                                                                                                            Net Weight:1.0kgs;

Resources

Drawings, Specifications

Retail Audio Player With Video Specification

Download
