High Power Speakers Retail Player
Premium Power Amplifier
Special Made For High Power Car Speakers' Demonstration

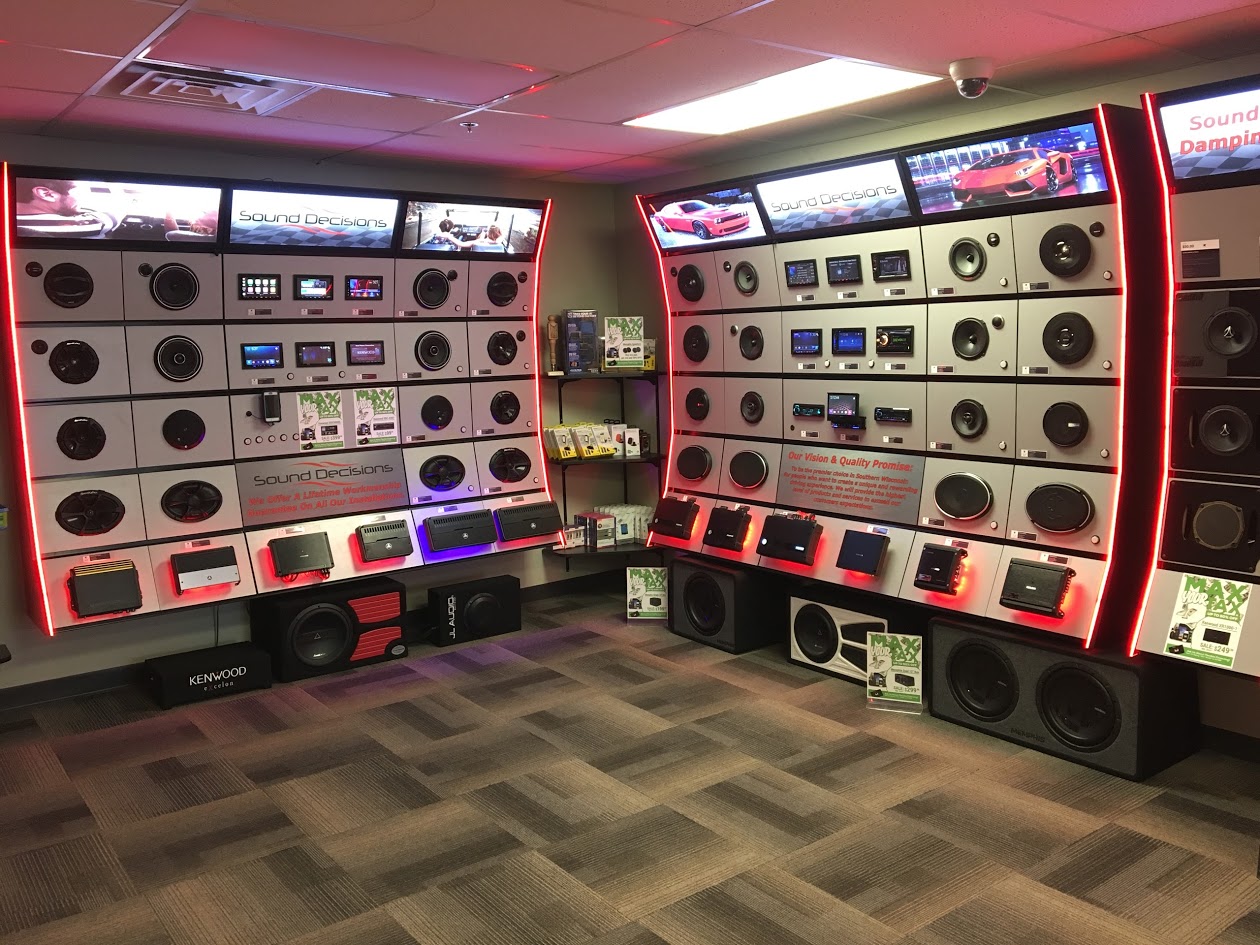

Car speakers enthusiasts are quite discerning for audio accoustics parameters and they have passion to buy only what they love. A premium yet affordable car speaker power amplifier is a must for building a compelling car speaker retail display.
Supports up to 2-Channel 50 Watts Max Power

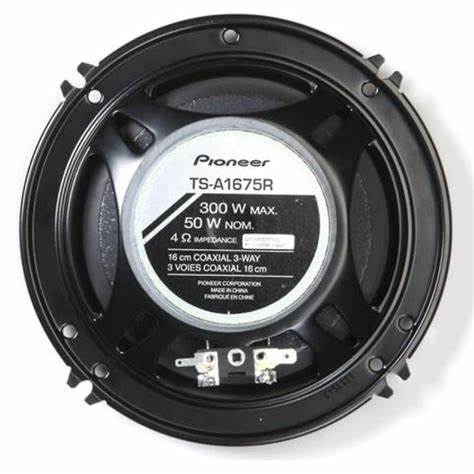

50 Watts are a balancing power among the mainstreamed car speakers, while this power means the maximum volume that is allowed by the retail stores.
Adjustable power output for wide range of speaker powers
Different power amplifier has its different optimal level to drive full potential of their audio dynamics, with adjustable power output, we make sure each and every demo speaker works in their best performance.
Premium acoustic performance with high clarity and low THD
With THD & noise level as low as <0.03% & S/N ≥100dB, we are proud of its high performance to work as the alternative to ANY branded power amplifiers.
Specifications
Dynamic Range
≥100dB
S/N (RCA)
≥100dB
Noise
392.21uVrms
Crosstalk
≥65dB
THD & Niose
<0.03%
Input Level
2.2Vpp
Output Level
45Vpp
RMS Power
2x30W（4Ω,12V,1KHz,1%THD)
MAX Power
2x50W（4Ω,12V,1KHz,10%THD)
Aux Input/Output Sensitivity(RCA)
1:22
Frequency Response
20Hz~20KHz
System Sampling rate
fs=600kHz
Input Impedance
12KΩ
Working Voltage
DC12V±2V(Boost to 28V)
The Static Current
≤60mA
Standby Power
≤30mA
Boot time
≤2S
Size of The board(W*H*L)
190mm*99mm*30mm
Input Signal
2 Channel RCA Audio Source
Output Signal
2 Channel RCA Audio Source
Signal Gain Of The Output Channel
-30dbm~30dbm
Output Phase
Positive phase
Output Delay
20ms
Resources
Drawings and Specification Datasheet
Specification Datasheet
Download
