Demonstrating Dolby Atmos Soundbars

Atmos sound bar with immersive experience.

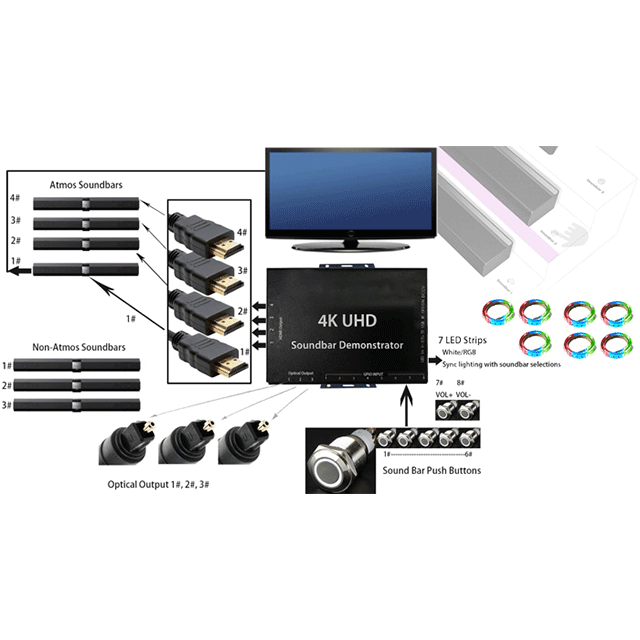

The demonstrator supports Dolby Atmos sounds with immersive movie

experience, via CEC control, we take advantage of the passing-through

capability of our 4K UHD soundbar media player,To let the audio player

send the pure raw audio meta data to Atmos Soundbars and decode the

Dolby Atmos data naturally like at-home experience.

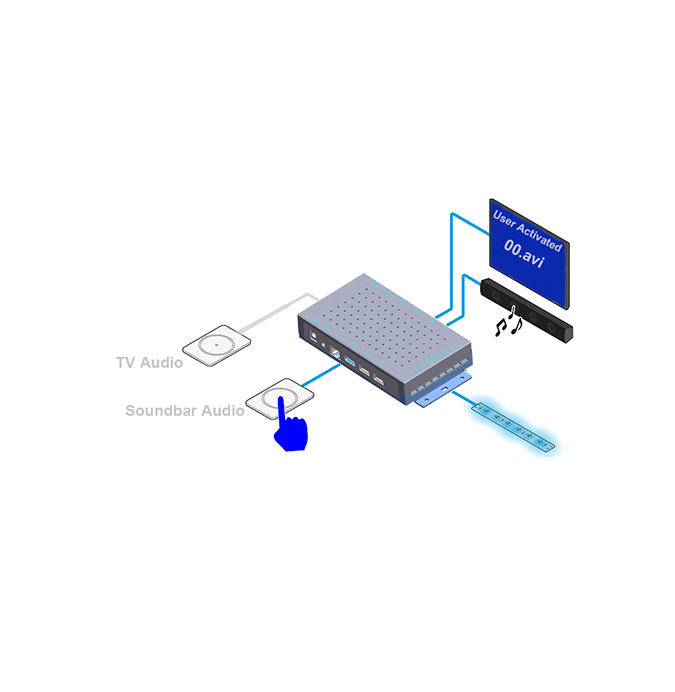

User Experience.

The demonstrator will auto play demo video files from on-board Memory ,the root of SD card or USB drive in a loop. The audio is sent to demo TV at default. The user can press one of the eight push button selectors to start demo mode:

the sound is toggled into the corresponding soundbar for X seconds from Playlist Y, and X & Y is Configured via a XML based configurator.

The toggled sound from TV speakers to a dedicated soundbar will return to TV speakers after the X seconds, and re-toggled into soundbar until next press, users can adjust the volume via volume up, down and mute buttons.

AMplayer app.

The core of the soundbar demonstrator is the Amplayer app to rule all the playback syntax like playlist, volume increments, default Volume, audio timeout, default loop file, default mode, playlist matcher, CEC control, LED lighting sync and patterns. And we have built a txt file based operator, to let customers custom the user experience via their own.

Learn More

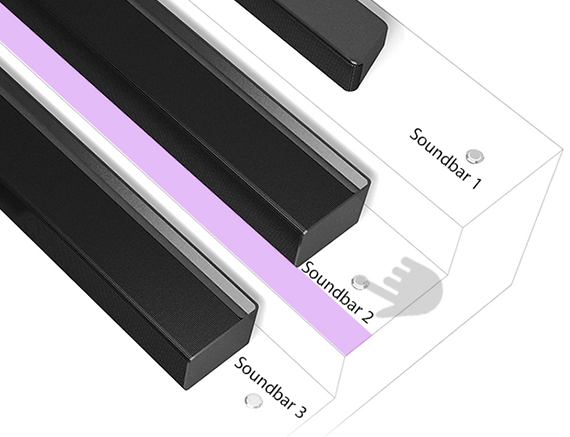

Lighting Sync.

The LED lighting is synchronizing with sound bar selections, the selected sound bar will be highlighted while others’ lighting turns Off. The LED strip

lighting can be optional with white or RGB.

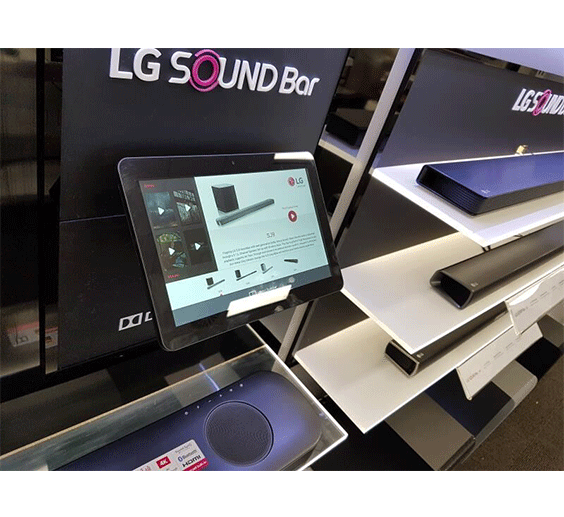

Touchscreen compatible, with authoring syntax.

The demonstrator can support touchscreen as user interface instead of push buttons, moreover, it comes with a simple GUI kit for customers to assembly their advertising content and touch spots of every user interface like making a powerpoint, all the user experience related parameters can be changed via a text with tech-free authoring syntax.

Specifications

Processor

Quad-core 64-bit ARM® Cortex™-A53 up to 2GHz

Memory

1GB Dual Channel DDR3

Graphics

Integrated Graphics Processor Penta-core ARM® Mali™-450

Internal Memory

4GB

Digital Video Formats

H.265, HEVC MPEG2: MP@HL MPEG4.2: ASP@L5 ,MPEG4.10 (H.264): [email protected],VC-1: AP@L3,WMV9

Size

200.3mm (L) x 140mm ( W ) x 28mm (D)

Weight

380g

Power

12V 1A

In the box

Soundbar Demonstrator Player Console,12V /1A Power Adapter (2.5m),Quick Start Guide

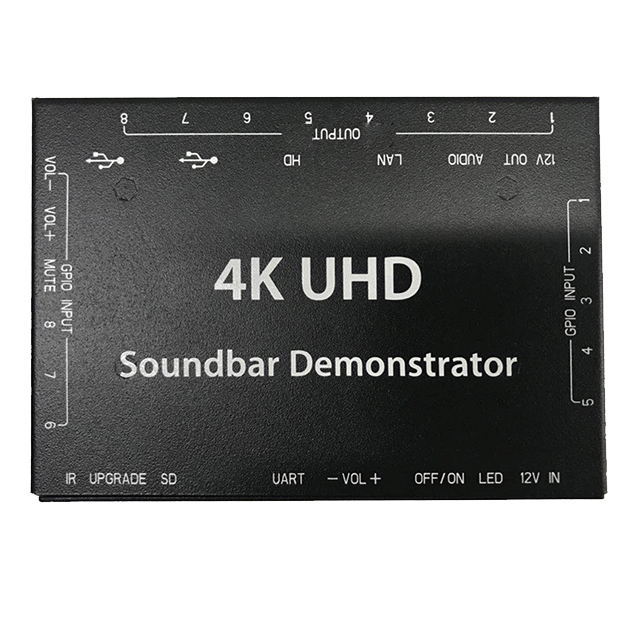

Connections

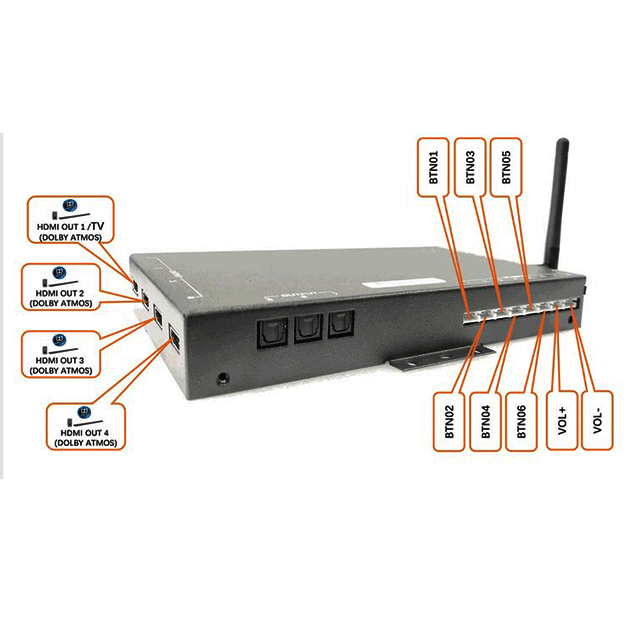

HDMI 2.0x 4, Toslink x3, LED lighting, Push button Molex connectorx8, OTGx1, TF card x1, Power On/Off, RJ45x1
