USB digital Audio Retail Player
24-Bit 192KHz Hi-Fi Audio
Premium USB-C / USB-A Headphone & Speaker Demonstration

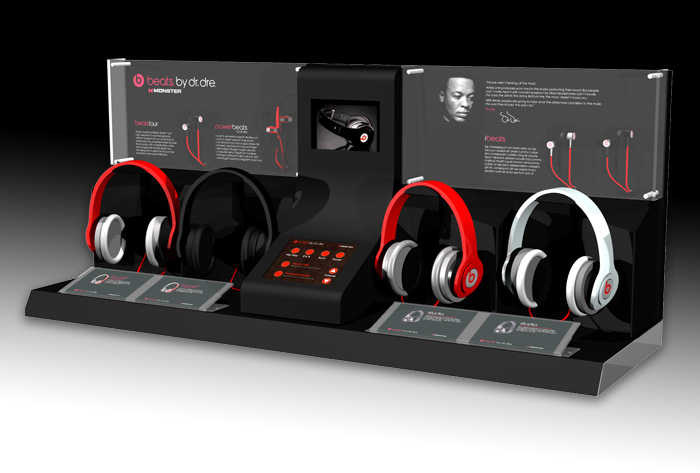

A versatile retail solution to fit in retail environments where USB C headphones & headsets requires direct connection with type A or type-C port to demonstrate high resolution 24-bit audio experience.
Custom Friendly
Custom programming play control is done by changing a group of numbers in a text file, it doesn't require any IT background to manage it.
Wide dynamics & high clarity Count
Our premium 24-bit 192KHz DAC would be a perfect match to even the most famous headphone brands with wide dynamics & high clarity for accoustics performance.
Specifications
Accoustic
>Frequency response: 20 – 20KHz (+/- 0.609dB ), ;
DAC Spec
24-bit, 192KHz (wav), 48KHz (mp3 );
File formats
mp3, wav, flac;
File storage media
SD card (TF) ,USB 2.0, format: FAT 32;
Interface

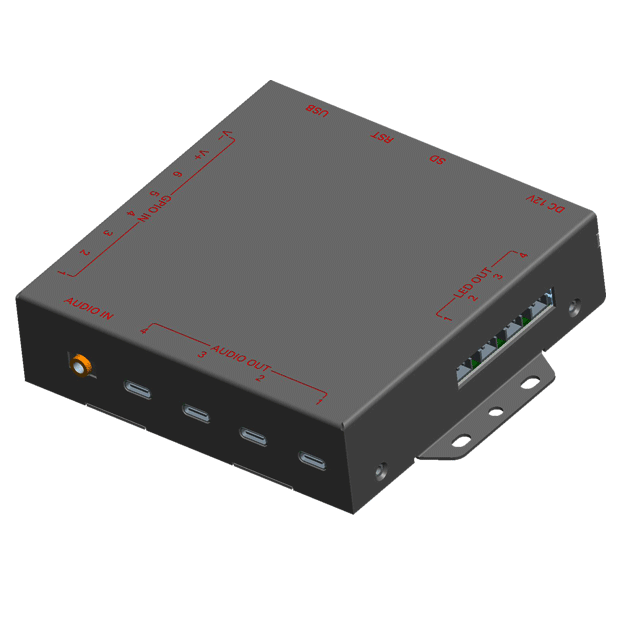

USB A /C x4, DC in 12V x1, DC out 12V x1; SD card x1, USB 2.0x1, GPIO 4-pin Molex Port x 9 (music selection and volume ); LED lighting control molex port x4;
Resources
Drawings and Specification Datasheet
Specification Datasheet
Download
