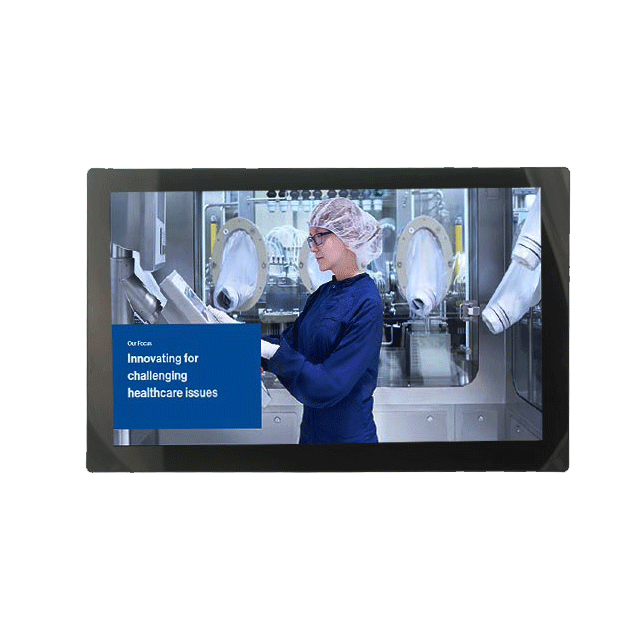

Medical Workstation Tablet
Special Designed For Point of Care Medical Tablet Cart
Medical Cart Tablet Android availble in rechargeable and replaceable batteries

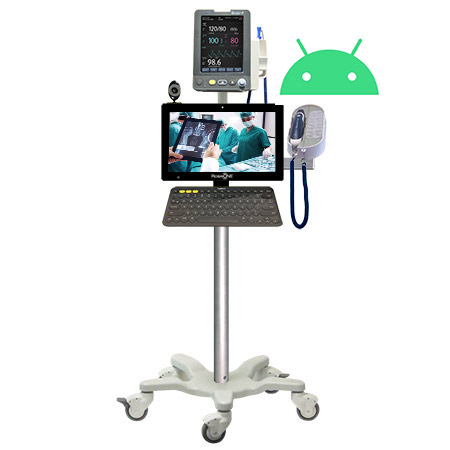

Smart solution for moving medical tablet who's workstations on wheels by using a cordless, our low-power consumption industrial tablet can assume up to 17 hours long time operation by our replaceable or rechargeable batteries, easy to integrate with related medical pheripherals.

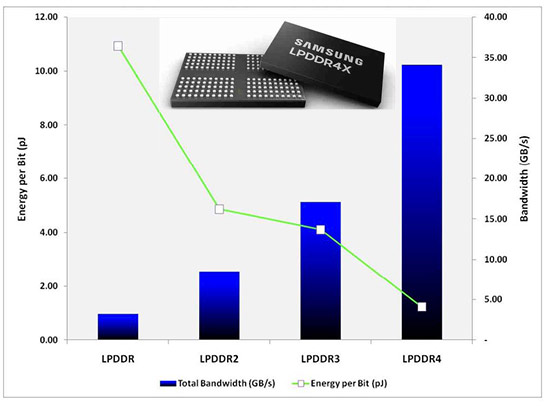

TOP RAM CHIPS
LPDDR4(Low-Power Double Data Rate Synchronous Dynamic Random Access Memory) RAM chips assumed the optimum power performance.

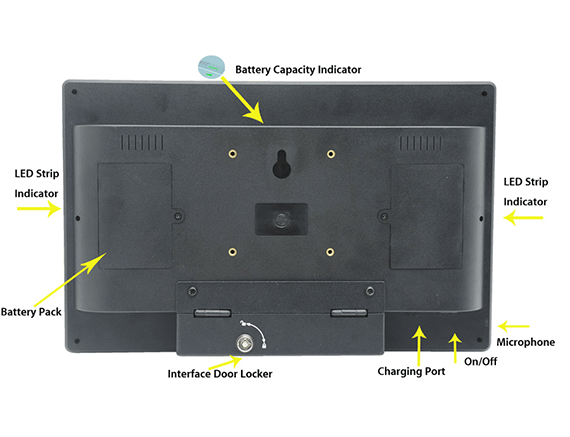

Battery Capacity Indicator and VESA Mount.
With standard VESA mount and battery capacity alarm, it will beep when the battery is lower to the preset level, makes our medical cart tablet a saler-friendly product, simplified the management.
Customizable in Hardware and Software.
Dedicated Android 7.1,8.1 OS make it possible for various medical application, and our cost -effective computerized meidical tablet also can integrate with retail accessories like medical barcode scanner, RFID tag reader.
Specifications
Model No.
Droid1330
CPU
Rockchip RK3399 Cortex-A72b Dual Core 1.8GHz+Cortex-A53 Quad-Core 1.4GHz
GPU
Mali-T864 GPU
RAM
4GB LPDDR4
Storage
16GB
Operating System
Android 7.1
Display
13.3” LED-backlight screen with capacitive touch
Display Resolution
1920x1080
Network Interface
Wi-Fi 802.11ac, 2.4GHz(5G optional ); Bluetooth 4.2 LE
Control Switch & Buttons
1x power button (optional), Battery On/Off
Speaker
Built-in speakers
Camera
Full-HD front camera 2.0MP
USB Port
USB 3.0x1, USB 2.0x1, Type C USB OTG x1
Headphone-Out
3.5mmx 1
Ethernet Port
Ethernet 10/ 100/ 1000MB Base-T LAN
HDMI Out
x1
DC in
x1
AC/DC Adapter
Input: 100 – 240V AC; Output: 12V DC, 2A
Battery Pack
10,000mAh, 12V (Hot Swappable 18650 Pack Available )
Battery Usage Indicator
LED indicator and on-screen icon
Enclosure
ABS + PC plastics
Dimensions (H x W x D)
354.9*221.8*29.7mm
Weight
1.6kgs
Regulatory
FCC
Temperature
Operation: 0°C – 40°C; Storage: -55°C – 70°C
Humidity
0% – 90% non-condensing
Options
Barcoder Scanner, RFID reader optional
