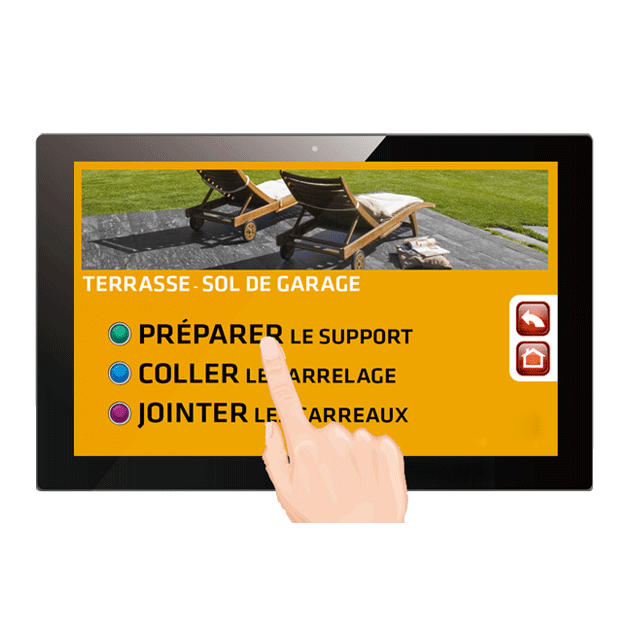

Commercial-Grade Retail Tablet PC

Integraed Android Meida Player & Peripheral Drivers

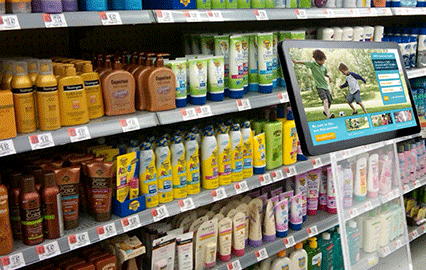

Android OS has rich media codec, library, as well as developer-friendly hardware drivers for customization; Android retail tablets are designed to use in commercial applications 24/7, via WiFi, Ethernet or cellular 4G LTE.

IPS screen with LED backlight

178 degrees wide viewing angle to ensure visual reach,The panel and backlight have a lifespan in excess of

30,000 to 50,000 hours.

Power Options

Available via AC adapter power, Power-Over Ethernet, Battery Power.

Not every installation spot has the access to main power, and not every installation has to be powered via AC adapter. In hotels, Conference, meeting room, cable management is a challenge when power & data to be a single cable makes great impact.

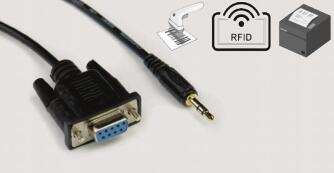

RS-232 & GPIO & Toslink & More

As a solution provider as well as Android ARM device developer, We have optimized android to be commercial use friendly, via unified architecture between different boards, OS versions, screens,

peripherals ,In order to quickly meet the varied project requirements, With consistent interplay between hardware & firmware.

PCAP Multi-touch

We know touchscreens, no matter it is a giant touch panel with 5mm touch cover for anti-tampering, or a small touch panel under WC Mirror, or a touch screen built-in a vending kiosk , a multi-screen shared touch panel, we are able to quickly turn client’s concept

into real solution for mass production.

Specifications

Model No.

Droid1026

Enclosure Color

Black

Screen Size

10.1 inch

Panel Type

IPS, full viewing angle

Touch panel type

10-point Capacitive touch

Active Area

216.96(H) x 135.6(V) mm

Resolution

1280 x 800

Pixel Pitch

0.1695 X 0.1695

Brightness

400cd/m2

Contrast Ratio

1300:1

Aspect Ratio

16:10

Viewing Angle

85/85/85/85(L/R/U/D)

Processor

Rockchip Cortex-A17 Quad-core RK3288

RAM

DDR3/4, 2GB

ROM

16GB

Android 7.1, 9.0, 10.1, 11, 12

I/O Ports

1 x RJ45, 3 x USB 2.0, 1 x USB 2.0 OTG, 1 x 3.5mm earphone, 1 x SD card slot, 1 x 12V/1A DC Jack

Front Camera

2,000,000 pixels

Audio

Built-in stereo speakers 2W x 2

Power

Power input DC 12V, 1A

Power Over Ethernet ( PoE )

802.3 af/at

Media Support: Video

AVI,H.263,H.264,VC‐1,MPEG‐2,MPEG‐4,DIVD/DIVX,Real8/9/10,RM,RMVB,PMP,FLV,MP4,M4V,VOB,WMV, 3GP,MKV,AS- F,3G2M4V,MJPEG,RV10

Media Support: Audio

MP1,MP2,MP3,WMA,OGG,AAC,M4A,FLAC,APE,AMR,RA,WAV

Media Support: Photo

JPG, BMP, PNG, GIF

Connectivity

Wired Ethernet 10/100(0), WiFi 802.11 b/g/n/, Bluetooth 4.0

General Information

Case Material

High‐quality PC+ ABS case with partial rubber injection

Fixations

VESA 75x75mm

Working Temperature

0 ‐‐ 50 degree

Dimension

250x176.6x26mm

Net Weight

1.2 kgs
