Lighting Guided Panel
LED edge lit light guide panel system
Creating Stunning
Display & Lighting
LED light guide panel creates stunning displays and lighting for retail, POP, cosmetic, architectural signage, and other commercial environments

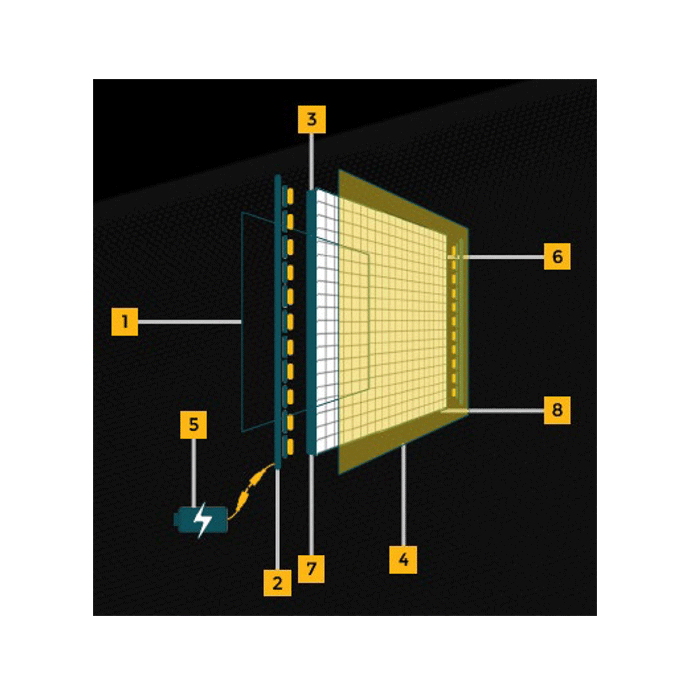

Compact Structure Overview
1. Protective film: optional reflective film for added thermal management and enhanced brightness

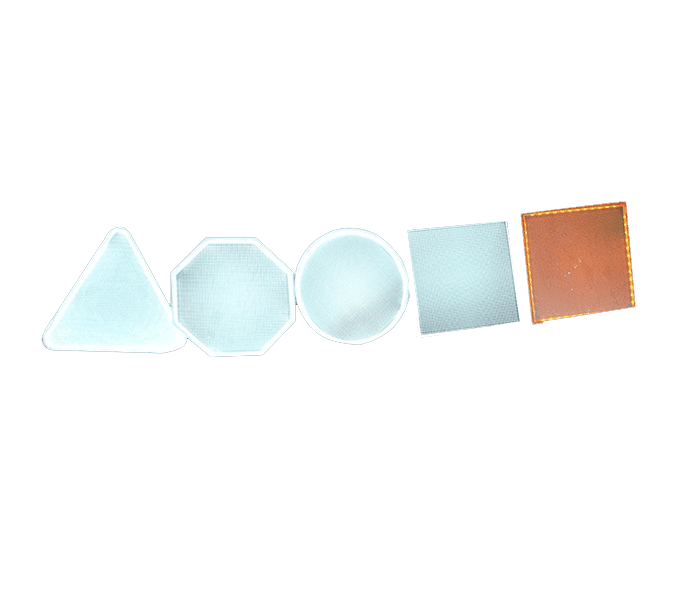

Custom sizes
and shapes LGP.
Every project is unique, we provide custom solutions. For specialized applications we provide fully customizable led light panel solutions that can be manufactured to fit any shape, size and specification up to 47.20” x 94.44” (1199 mm x 2399 mm) and range in acrylic thicknesses between .11” (3mm) up to 0.19” (5mm).

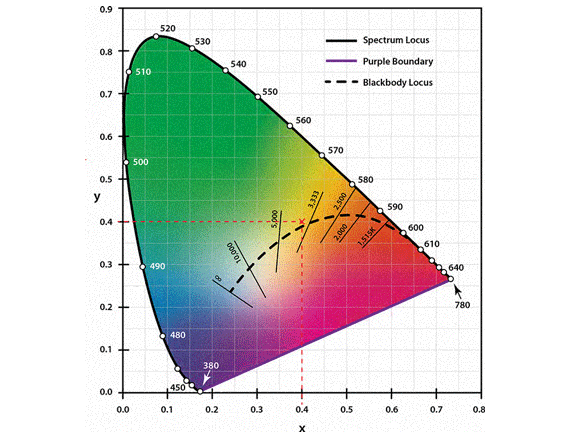

Custom CCT LED light guide panels.
Custom CCT means a fully customizable LED light guide panel and available in 3000K,4000K, 5000K, and 6500K color temperatures.
Custom RGB, RGB+W.
Precise lighting matching any Pantone code, custom RGB, RGB+W means a fully customizable series of color changing led light panels offering lighting designers the ability adjust colors.

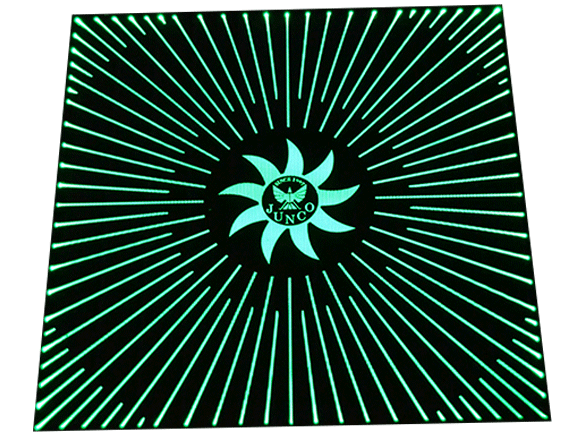

Custom Lighting & Display Patterns Via Programming.
Looking for animated light guide panel displays ? We have interactive, animated options featuring motion sensor detection, motor driving moving, sound detection as well as programming in display patterns with custom sequence.
Specifications
Color
White CCT, RGB, RGB+W
Technology
Laser machines for precise cutting of PMMA optical grade cell cast acrylic and laser engraving for a fully optimized dot diffusion pattern
Panel Thickness ( PMMA )
3mm, 4mm, 5mm
Maximum Panel Size
47.20” x 94.44” (1199 mm x 2399 mm)
Mounting
No mounting for standard, mounting bolt optional
Application
Indoor use
Border finishing
Taped
Light Entry
1-sided, 2-sided, 3-sided, or 4-sided
Diffusion Film / Panel
Optional
Reflection Sheet
Optional, thickness .0007” (.02mm)
Power
Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Power Port
Customer define
Controller
Work with various retaill sensors including motion sensor, lift up sensor, etc; programmable lighting sequence
Input Voltage
12V DC
Operating Temperature
-20°C~+40°C
