Tablet Audio Controller
Intuitive Retail Experience

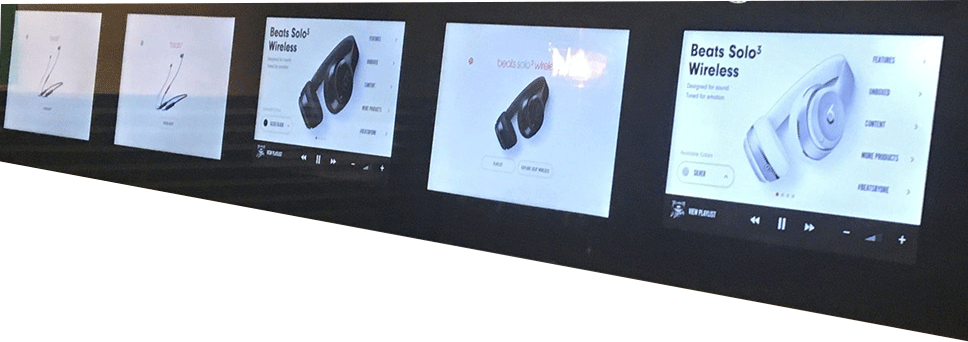

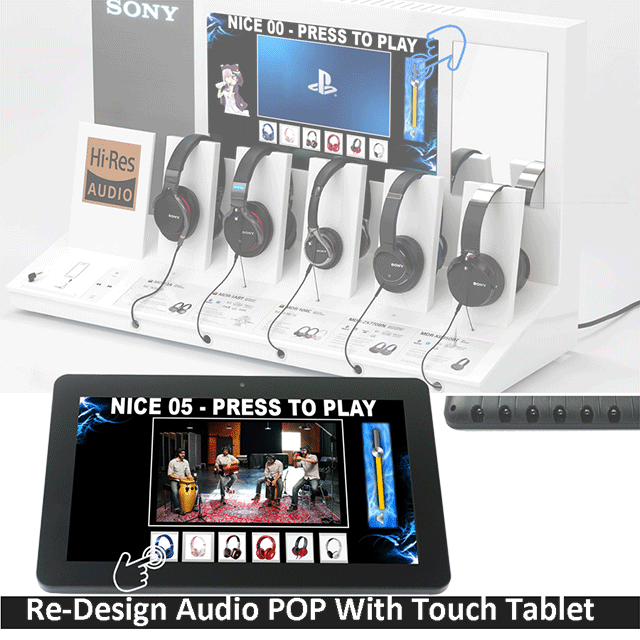

Retail Audio Demonstration With Touchscreen
Design retail user journey with graphic user interface, tablet touchscreen offers limited choices to make shoppers feel natural & intuitive when experiencing the retail audio products in-store. With our smart content authoring app, retail integrators don't need to develop audio demo apps, all they need is just to prepare their graphic content and load via USB auto copy.
Load Custom Settings via text file
Audio retail demo may be complicated, but we provide simplicity for retail integrators to handle, via changing some numbers based on matched syntax meaning, they can do custom setup in a minute.
Specifications
Panel Information
Panel Size: 11.6 inch
Active Area :256.32 (H) x 144.18 (V )
Resolution :1366x768 /1920x1080
Brightness: 250cd/m2
Contrast Ratio: 700:1
Viewing Angle: 85/85/85/85 (L/R/U/D )
Hardware & OS
Amlogic 64-Bit Quad-core S905X Android 6.1 / Rockchip RK3288 Android 7.1
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
RAM
2GB
ROM
8GB
I/O Ports

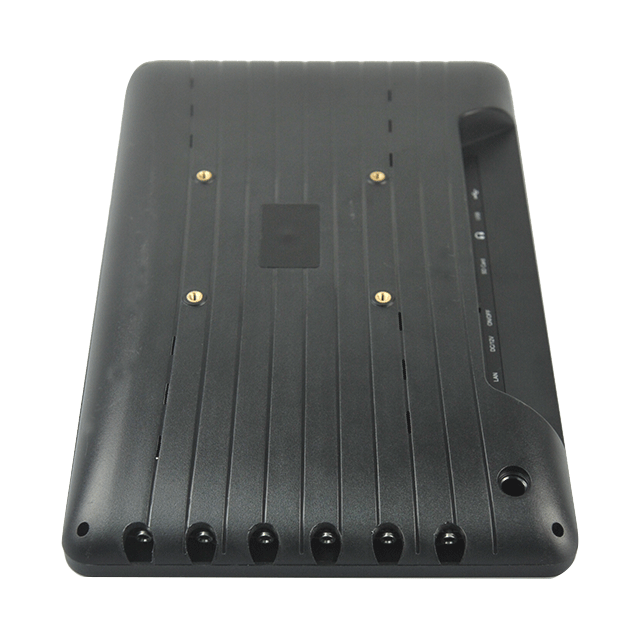

1 x RJ45, 1 x USB 2.0, 1 x USB 2.0 OTG, 1 x SPDIF, 1 x SD card slot, 3.5mm output x6, 1 x 12V/1A DC Jack
Media Support
Video (Full HD 1920 x 1080) AVI,H.263,H.264,VC‐1,MPEG‐2,MPEG-4,DIVD/DIVX,Real8/9/10,RM,RMVB,PMP,FLV,MP4,M4V,VOB,WMV, 3GP,MKV,AS- F,3G2M4V,MJPEG,RV10 Image JPG, BMP, PNG, GIF Audio MP1,MP2,MP3,WMA,OGG,AAC,M4A,FLAC,APE,AMR,RA,WAV
Connectivity
Wired Ethernet 10/100; Wifi Built‐in WIFI 802.11b/g/n; Bluetooth Built‐in Bluetooth 4.0
HS code
8471301000
Resources
Drawings and Specification Datasheet
Specification Datasheet 11.6-inch
